Fixed Intelligent Screw Driver TTA

Torque Range：0.01-200Nm

Danikor’s robot screwdriver is designed for automated screwdriving. It is extremely lightweight and compact, combining high accuracy and full traceability. It allows for complete error-proofing and automatic rework, fully compatible with Industry 4.0, and allows for easy integration with screw fastening robots or torque arms of your choosing. This results in a boost in production quality and a reduction in cycle time.

Application Industry

New energy vehicles

Automotive electronics

Automotive parts

Communication

Home appliances

Medical care

Request a Quote

Product Advantages

Accuracy

Standard deviation accuracy over the full torque range.

Accuracy test of hard& Soft connection conforms to ISO5393 standard.

Self-developed high precision algorithm control

Fast

Ensures accuracy and short time.

Ensure product quality and production efficiency.

Reduce setup time between different tightening requirement.

Intelligent

Record and monitor the data of full tightening process.

Upload in real time to computer and MES system.

It can store 2,000 groups of tightening results and can be expanded through SD card.

Higher curve sampling frequency and Higher data recording traceability.

Error-proofing

Abnormal monitoring of tightening process

Based on the angle monitoring of threshold torque, it can more timely and effectively find the unqualified tightening conditions such as floating lock, sliding tooth,wrong and missing, gasket missing etc.

Assembly process authority management

In the debugging interface, you need to enter the password to set the strategy and program.

Convenient

UI interaction is superior

UI interaction is superior It is convenient for the operator to set the strategy and data view.

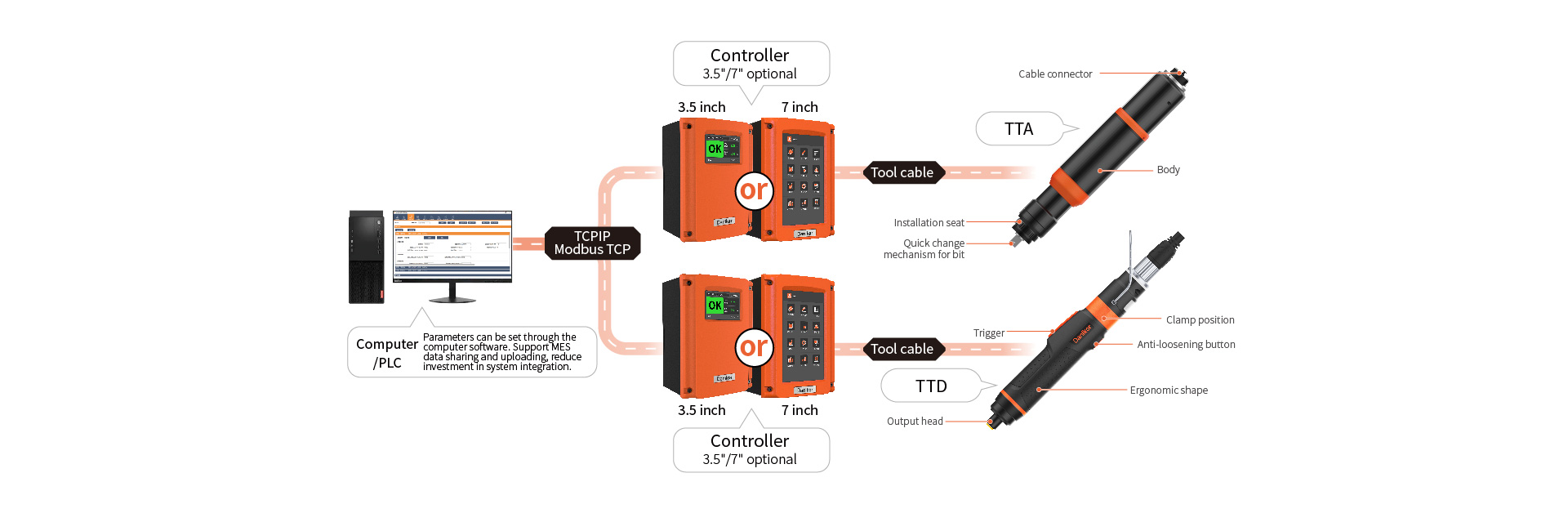

Product Structure

Product Parameters

Model	Max torque /Nm	Max speed /rpm	Accuracy	Dimension /mm	Weight /kg	Free range of head/mm	Bit quick connector	Screw driver controller	Screw driver cable
PTC-ASF-4500M-0-HM0-000	0.05-0.45	1500	±2.5%	135×46×57	0.51	-	HM4	OPT-STC-C1-V1 -50W	5m/10m/15m Straight or Angle optional
PTC-ASF-0009N-0-H10-000	0.09-0.9	1500		162.6×46×57	0.81	-	Hex 1/4"	OPT-STC-C1-V1 -100W
PTC-ASF-0009N-0-H10-015(L)	0.09-0.9	1500		206×46×57	0.78	15	Hex 1/4"
PTC-ASF-0030N-0-H10-000	0.5-3	950		236×46×57	1.35	-	Hex 1/4"
PTC-ASF-0030N-0-H10-030(L)	0.5-3	950		302×46×57	1.32	30	Hex 1/4"
PTC-ASF-0065N-0-H10-000	1.5-6.5	450		236×46×57	1.35	-	Hex 1/4"
PTC-ASF-0065N-0-H10-030(L)	1.5-6.5	450		302×46×57	1.36	30	Hex 1/4"
PTC-ASF-0070N-0-H10-030(L)	1-7	830		361×70×82	2.99	30	Hex 1/4"	OPT-STC-C1-V1 -200W
PTC-ASF-0120N-0-H10-030(L)	4-12	900		361×70×82	3.42	30	Hex 1/4"	OPT-STC-C1-V1 -400W
PTC-ASF-0180N-0-S20-030(L)	3-18	180		321×46×57	1.66	30	Square 3/8"	OPT-STC-C1-V1 -100W
PTC-ASF-0270N-0-S20-030(L)	5-27	450		361×70×82	3.46	30	Square 3/8"	OPT-STC-C1-V1 -400W
PTC-ASF-0520N-0-S30-050(L)	12-52	240		450×70×82	4.51	50	Square 1/2"
PTC-ASF-1050N-0-S30-050(L)	20-105	230		498×100×108	9.69	50	Square 1/2"

Releated Cases

New Energy Vehicle Industry

Integrate clean feeding technology, intelligent tightening technology, <br/>digital and intelligent software system to accompany every step of <br/>intelligent assembly upgrade of new energy vehicle industry.

Automotive?Industry

It covers the assembly application scenarios of various parts and components, and drives the intelligent assembly of automobile manufacturing industry to achieve high-quality and high-efficiency development.

Energy?Storage?Industry

Focus on the innovation of automatic feeding and intelligent tightening technology to ensure the safety and stability of energy storage products.

Communications?Industry

Through automatic assembly equipment, reduce manual intervention, ensure the accuracy of production and assembly, and improve the quality and efficiency of production and assembly of communication products.

3C?Electronics?Industry

Focus on building a "flexible intelligence +" technology innovation system to promote the intelligent transformation and upgrading of 3C electronic assembly.
